Dragonfly

ABOUT THE PRODUCT

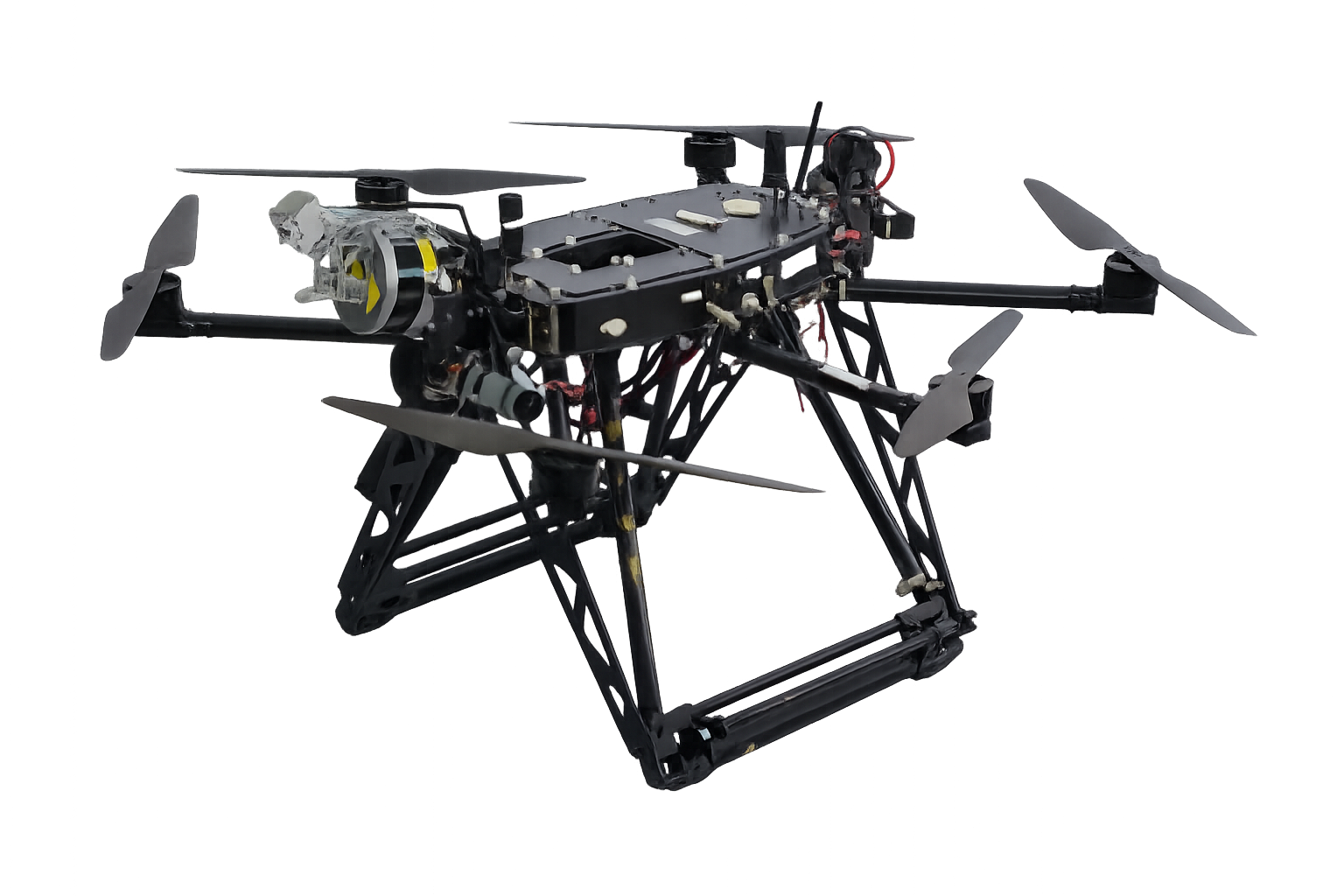

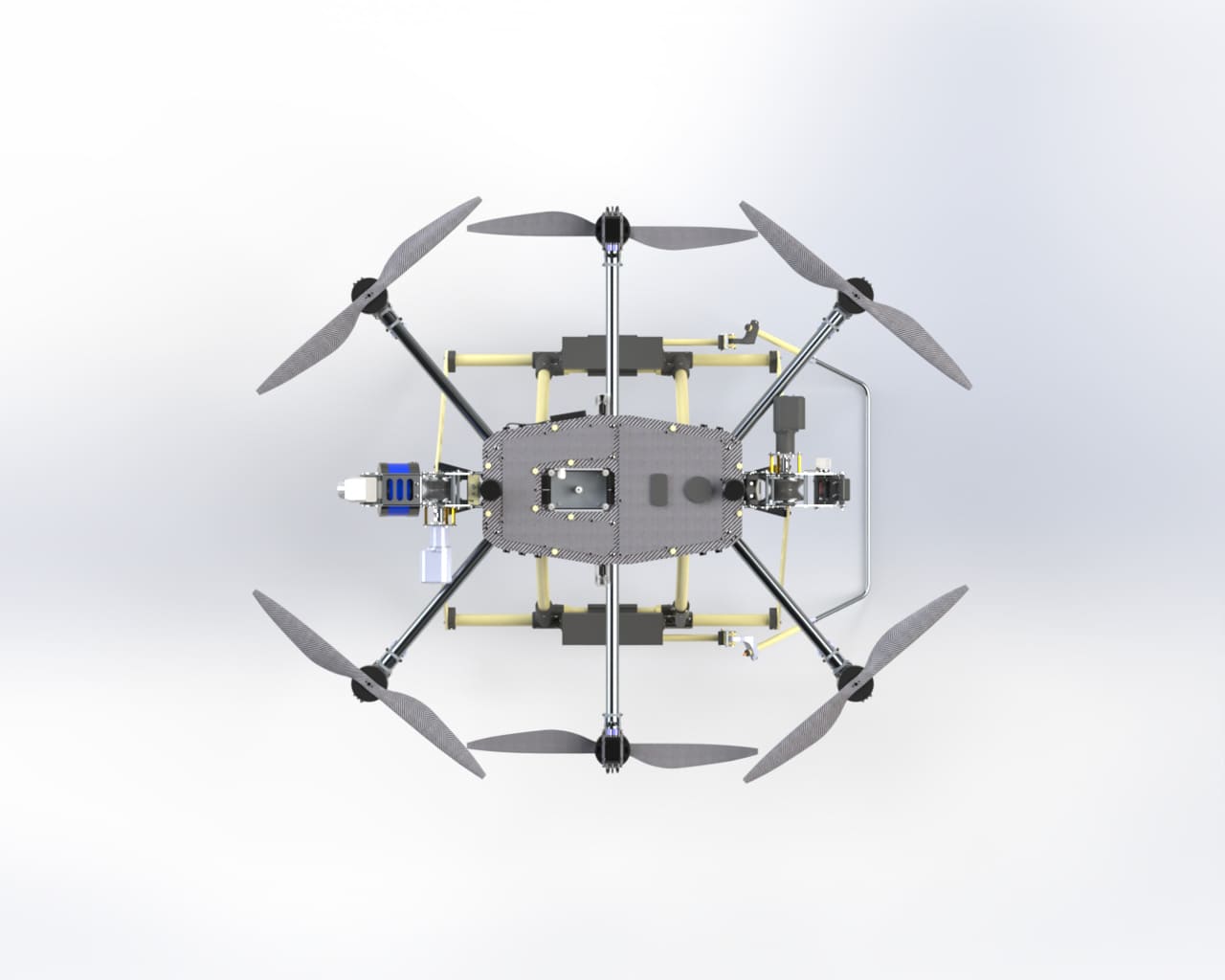

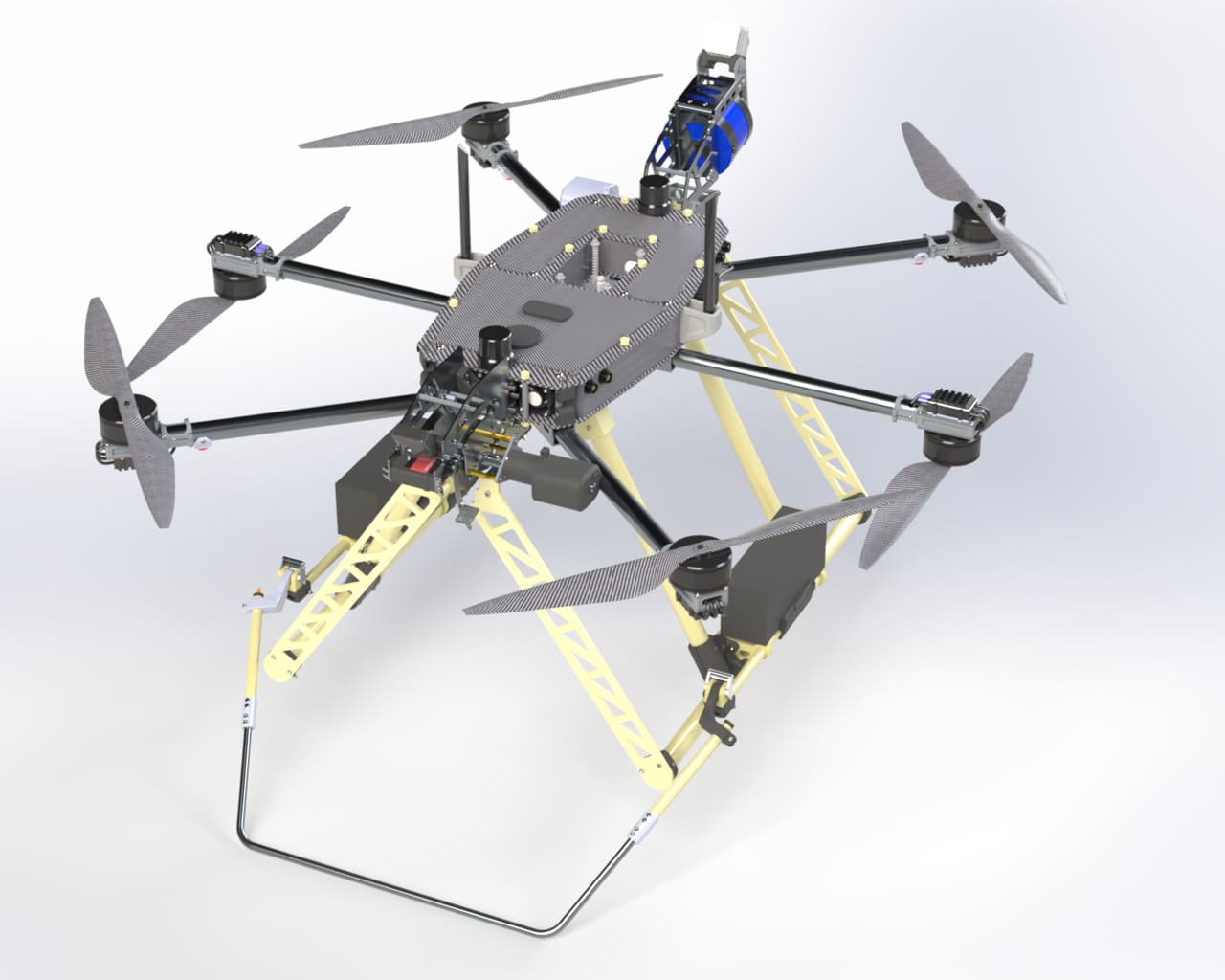

"Dragonfly" diagnostic complex is designed for comprehensive contact diagnostics of overhead power transmission lines rated at 35–500 kV. Its unique design allows it to land on a live wire without de-energization and perform: video monitoring, laser scanning, magnetic flaw detection, installation of repair equipment, and diagnostics of adjacent power line components.

SPECIFICATIONS
UAV Type
Multirotor, hexacopter
Weight (without batteries)
14.9 kg
UAV weight with batteries (operational mass)
17 kg
Payload capacity
1.1 kg
Maximum takeoff weight
25 kg
Optimal operating radius
Up to 2 km over open terrain
Maximum operating radius
Up to 5 km over open terrain
Batteries (capacity)
2 × 16,000 mAh × 22.2 V
Communication interfaces
Radio, GPS and GLONASS, Galileo, BeiDou
GPS & GLONASS parameters
Sensitivity 160–167 dBm, positioning accuracy 0.01 m
Radio communication parameters
Frequency 5.725–5.850 GHz, 915 MHz FHSS
Video transmitter parameters
5.8 GHz AV, output power 25 mW
Auxiliary communication parameters
2.4 GHz Wi-Fi, output power 100 mW
Operating duration
Up to 20 minutes in flight, up to 3.5 hours traveling along wire/cable
Range along power line without recharging
Up to 2 km
Supply voltage
19.8–25.2 V
Maximum flight speed
22 m/s
Video camera resolution
1920×1080
Product class
C4
Permissible ambient temperature
−30 to +50 °C
Maximum wind speed
10 m/s
Live-wire operation class
35–220 kV
Length
1,470 mm
Width
1,650 mm
Height
600 mm
