Remote AFO Fire Fighting

ABOUT THE PRODUCT

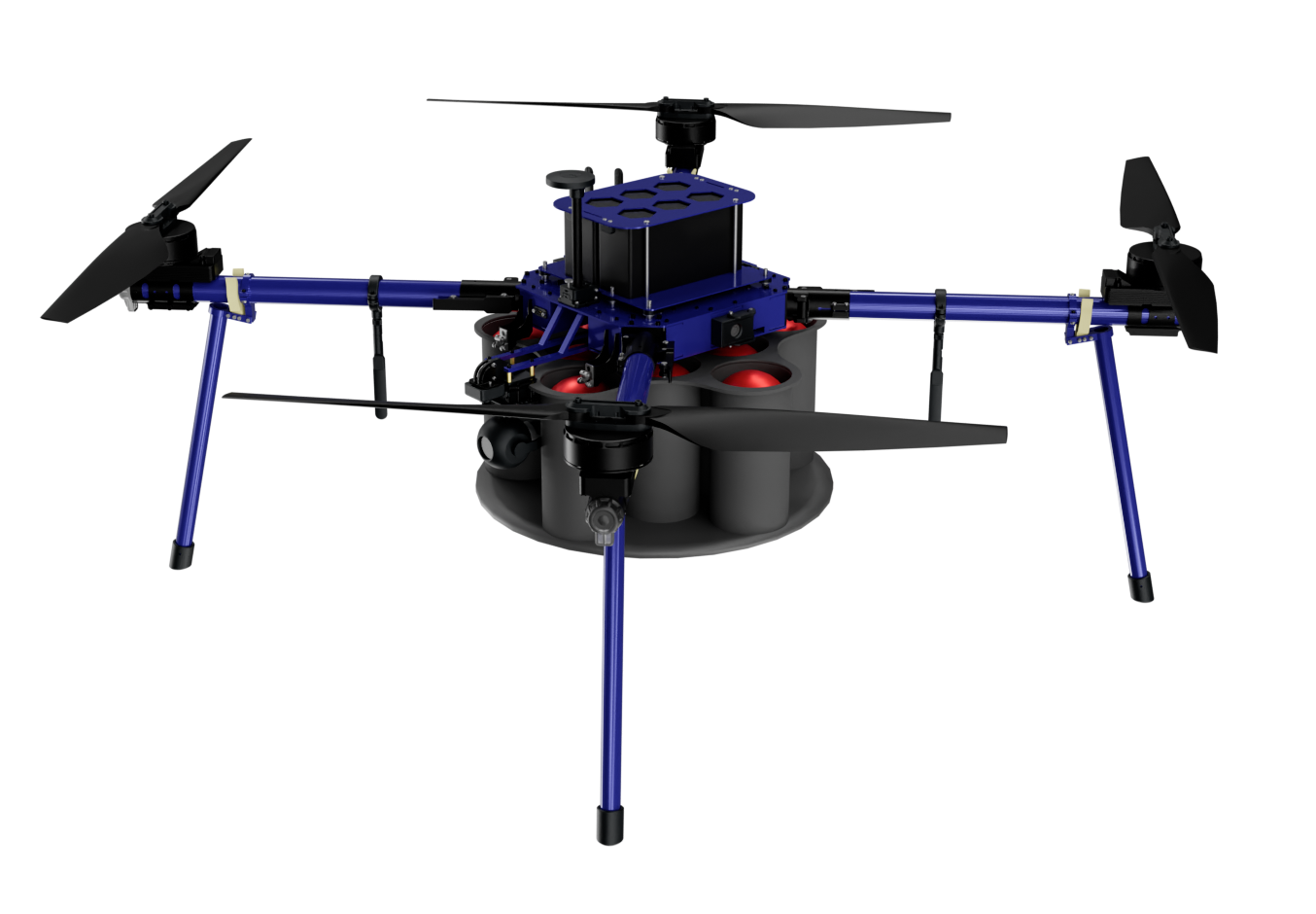

The "Ant" UAS with firefighting module is designed for rapid localization of open-area fires using an aerial drop scenario with self-activating fire suppression balls. Developed specifically for open-terrain firefighting.

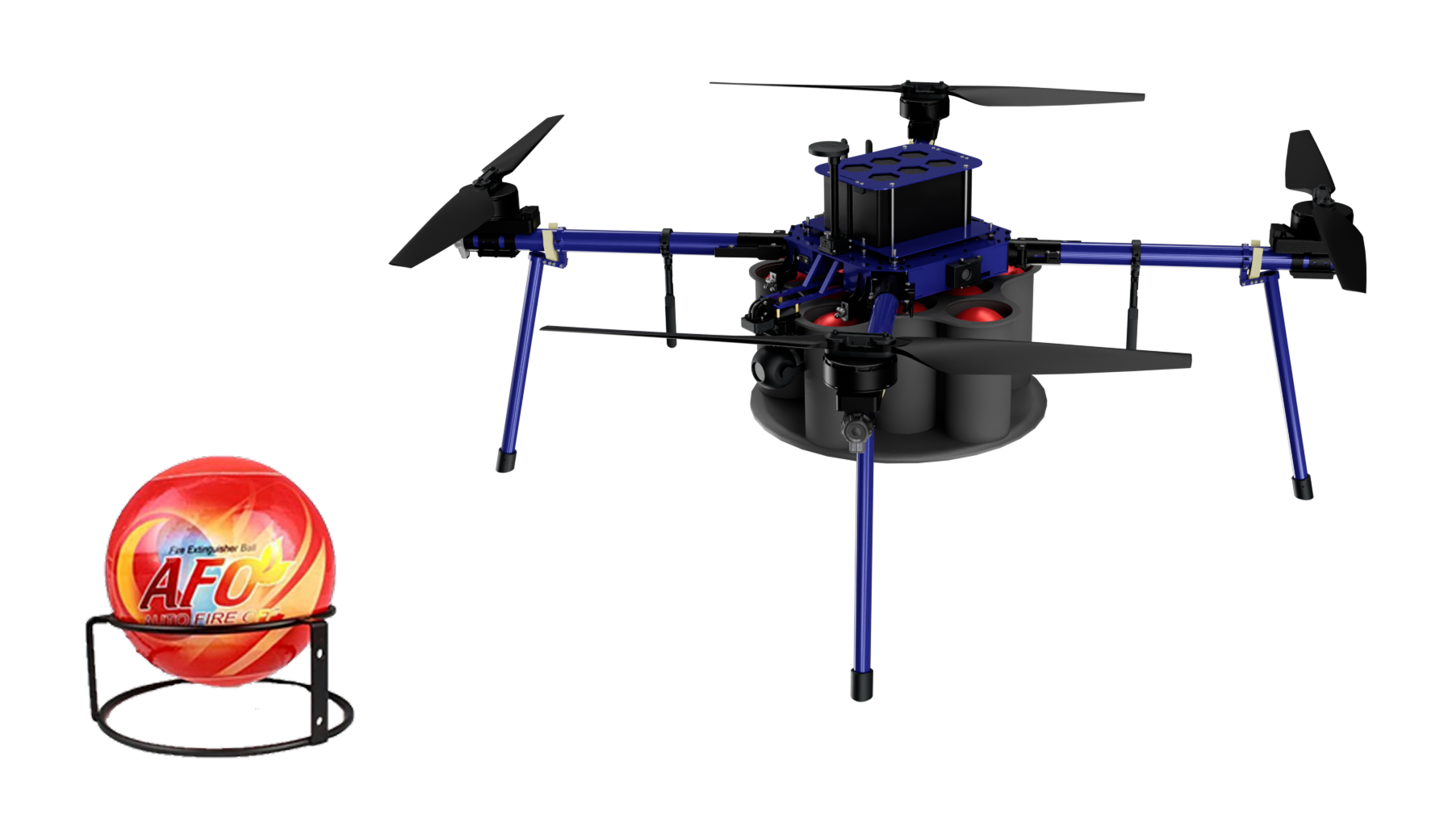

Our ANT firefighting UAV uses precisely designed carousel type dropping system and standard certified Auto Fire Off fire extinguisher balls.

Advantages:

High mobility: easy to deploy and operate, immediate reaction and fast delivery to hard-to-reach open fire sources.
Firefighting team personnel safety: the distance from fire source till firemen team up to 10 km due to ANT drone technical characteristics. Complex is designed to fight the fire in unsafe and exposure risky areas and conditions.
High precision and accuracy of balls drop: ANT uses advanced video and thermal channels as far as reliable command & control system.
Cost effectiveness: Cost effective solution comparing to the use of standard firefighting equipment.

SPECIFICATIONS
Motor type and quantity
Multirotor, 4 electric motors
Life cycle stage
Serial production
Launch/takeoff method
Vertical
Landing method
Vertical
Minimum takeoff and landing area
2.5 m × 2.5 m
Required landing surface type
Unprepared level surface
Warranty period
12 months or 100 takeoff-landing cycles
Communication link range
Up to 20 km (depending on conditions and configuration)
Communication link frequency range
5.150–5.850 GHz or 2.4015–2.4815 GHz and 5.725–5.850 GHz
Maximum takeoff weight
25.5 kg
Maximum payload capacity
12 kg
Maximum flight altitude
Up to 1,000 m
Maximum flight duration
Up to 52 minutes (depending on conditions and configuration)
Maximum flight speed
22 m/s
Maximum permissible wind speed
10 m/s
Operating temperature range
−20°C to +50°C
Length
1,941 mm
Width
1,941 mm
Height
662 mm
