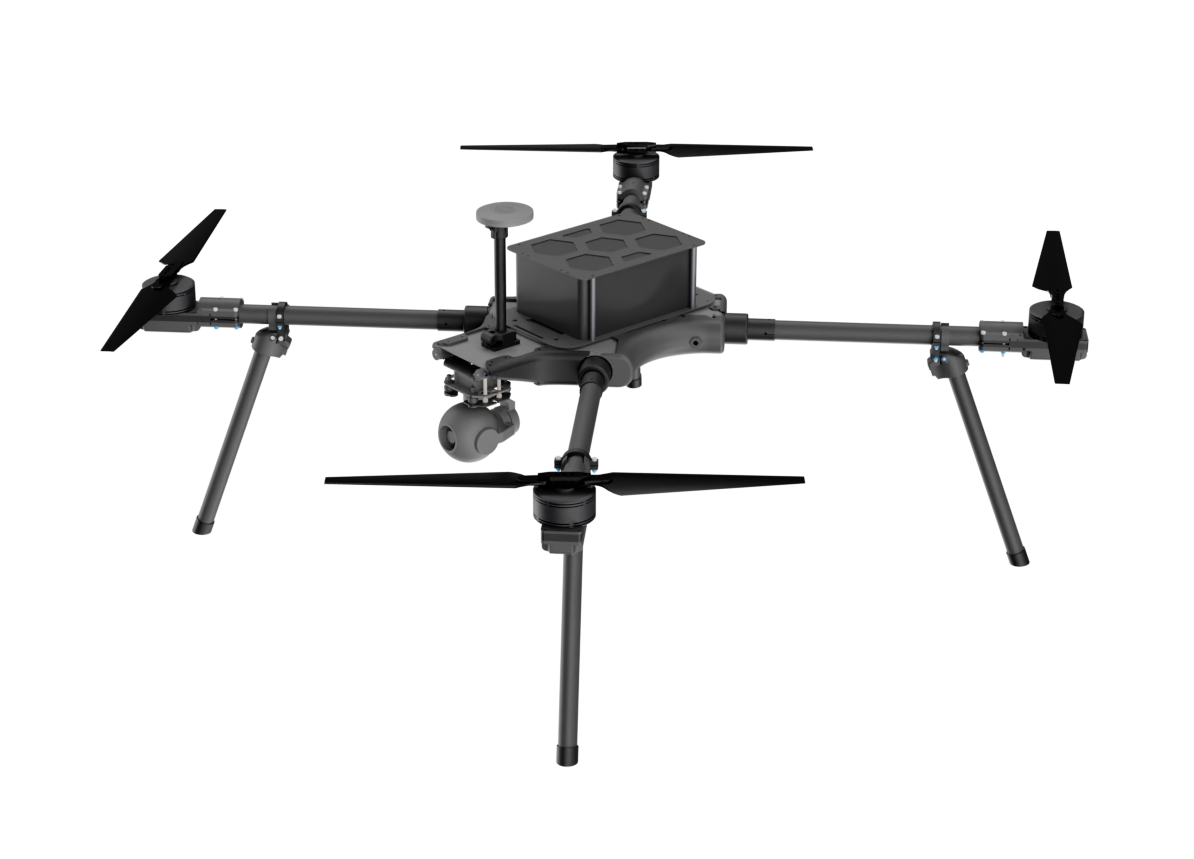

The "Fly" unmanned aerial system is designed for video monitoring and photo documentation using thermal imaging at critical infrastructure facilities. Its unique design allows it to carry payloads of up to 5 kg over long distances of up to 15 km.
✕
SPECIFICATIONS
UAV Type
Multirotor, 4 electric motors
Life cycle stage
Serial production
Launch/takeoff method
Vertical
Landing method
Vertical
Minimum takeoff and landing area
2 m × 2 m
Warranty period
12 months
Compliance with RF Government Decree No. 1701 dated 30.11.2024
Compliant
Weight (without batteries)
6.15 kg
Operational mass
9.6 kg
Payload capacity
Up to 5 kg
Maximum takeoff weight
15 kg
Communication link range
Up to 20 km (depending on conditions and configuration)
Communication link frequency range
5.150–5.850 GHz or 2.4015–2.4815 GHz and 5.725–5.850 GHz
Batteries (capacity)
2 × 22.2 V, 16,000 mAh
Communication interfaces
Radio, Galileo, BeiDou, GPS and GLONASS
GNSS parameters
GPS, GLONASS, positioning accuracy 2.5 m
Radio communication parameters
Frequency range: 5.725–5.850 GHz, output power 25 mW
Maximum flight altitude
Up to 600 m
Flight duration without payload
Up to 40 minutes (depending on conditions and configuration)
Supply voltage
19.8–25.2 V
Maximum flight speed
22 m/s
3-axis gimbal with 4K video camera and thermal imaging camera
Optical camera 6× digital zoom, effective resolution 8 MP, video/photo 4K (3840×2160). Thermal camera: resolution 640×512, digital zoom 2×
Permissible ambient temperature
−20 to +40 °C
Maximum wind speed
10 m/s
Additional restrictions
Flights to be conducted under normal climatic conditions in accordance with GOST R 15150-69
Length
1,378 mm
Width
1,389 mm
Height
537 mm
