Spider

ABOUT THE PRODUCT

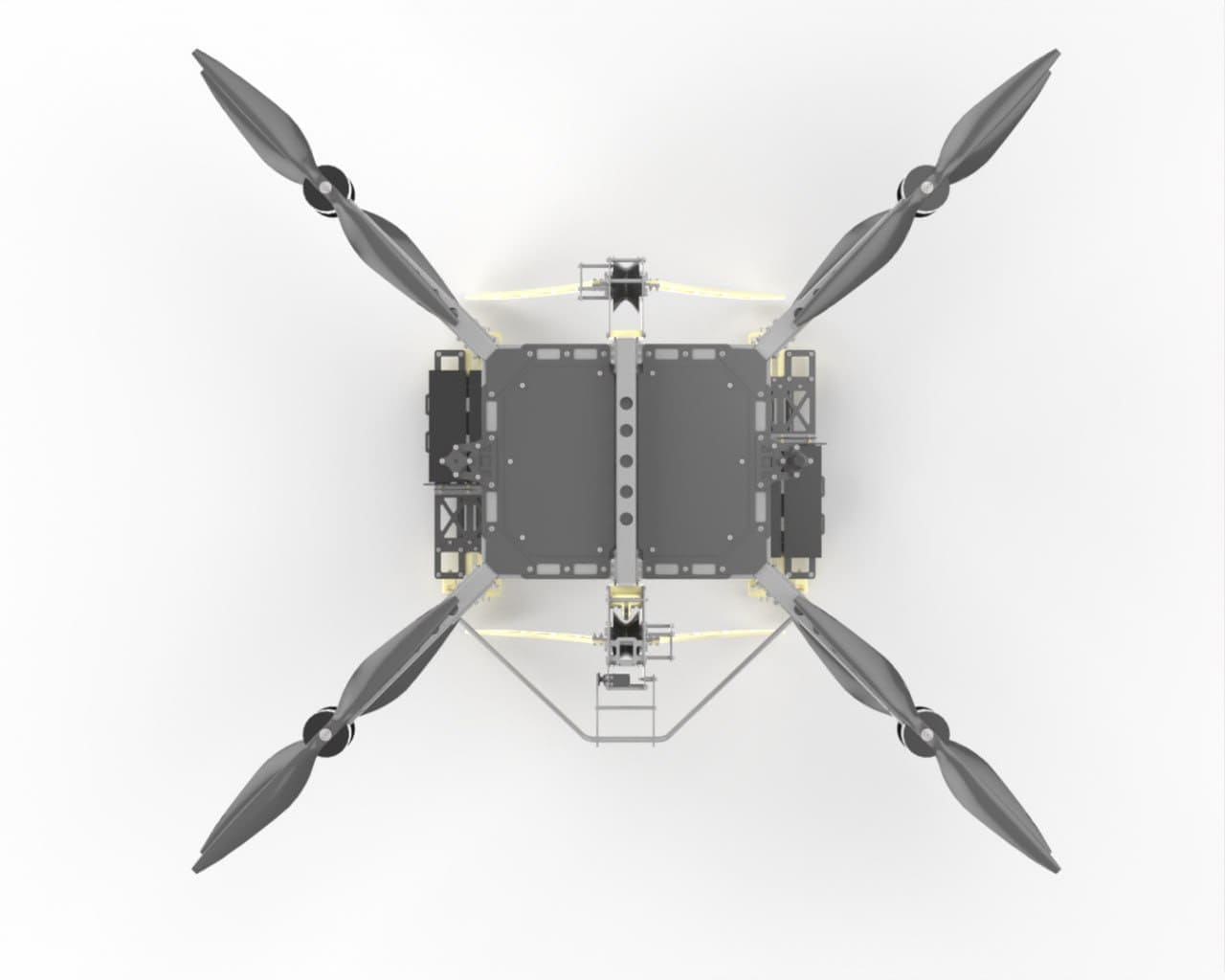

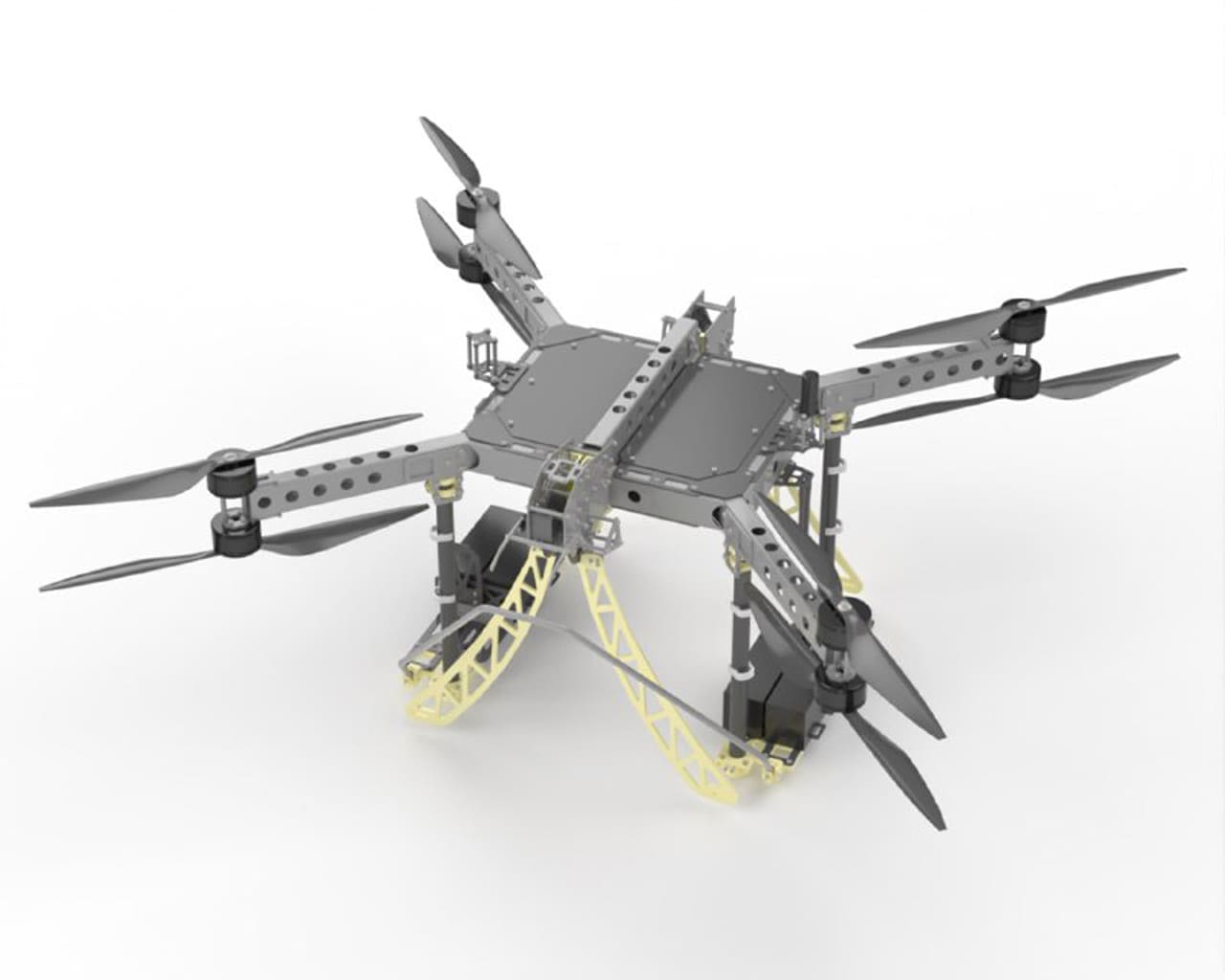

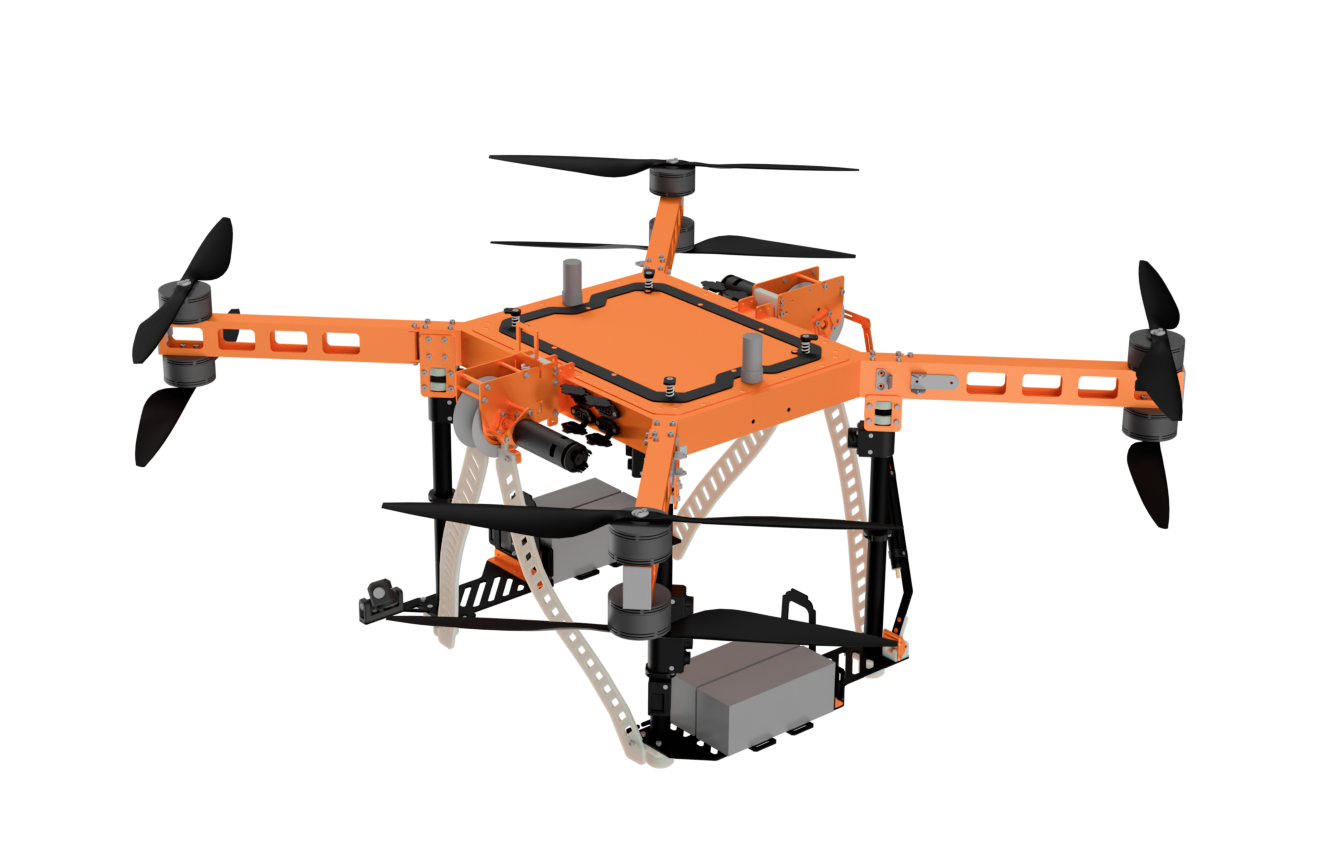

"Spider" system is designed for contact cleaning of overhead power line wires/cables (35–500 kV) from ice and frost deposits, as well as for application of anti corrosion compounds. Additionally equipped with manipulators for trimming wire strands and installing bird deterrents and marker balls.

SPECIFICATIONS
UAV Type
Multirotor, octocopter, coaxial
Weight (without batteries)
12 kg
UAV weight with batteries
20 kg
Payload capacity
9 kg
Maximum takeoff weight
29 kg
Optimal operating radius
Up to 2 km over open terrain
Maximum operating radius
Up to 5 km over open terrain
Batteries (capacity)
4 × 16,000 mAh × 22.2 V
Communication interfaces
Radio, GPS and GLONASS, Galileo, BeiDou
GNSS parameters
GPS, GLONASS, positioning accuracy 1.5 m
Radio communication parameters
Frequency range: 5.725–5.850 GHz, 915 MHz FHSS
Flight duration without payload
28 minutes
Flight duration with payload
16 minutes
Range along power line without recharging
Up to 2 km
Maximum travel speed along wire
1 m/s
Supply voltage
36.6–50.4 V
Maximum flight speed
22 m/s
Permissible ambient temperature
−30 to +50 °C
Maximum wind speed
10 m/s
Live-wire operation class (conductors)
35–220 kV
Live-wire operation class (ground cables)
35–500 kV
Length
1,490 mm
Width
1,410 mm
Height
610 mm
