UAS "Bumblebee" Educational

ABOUT THE PRODUCT

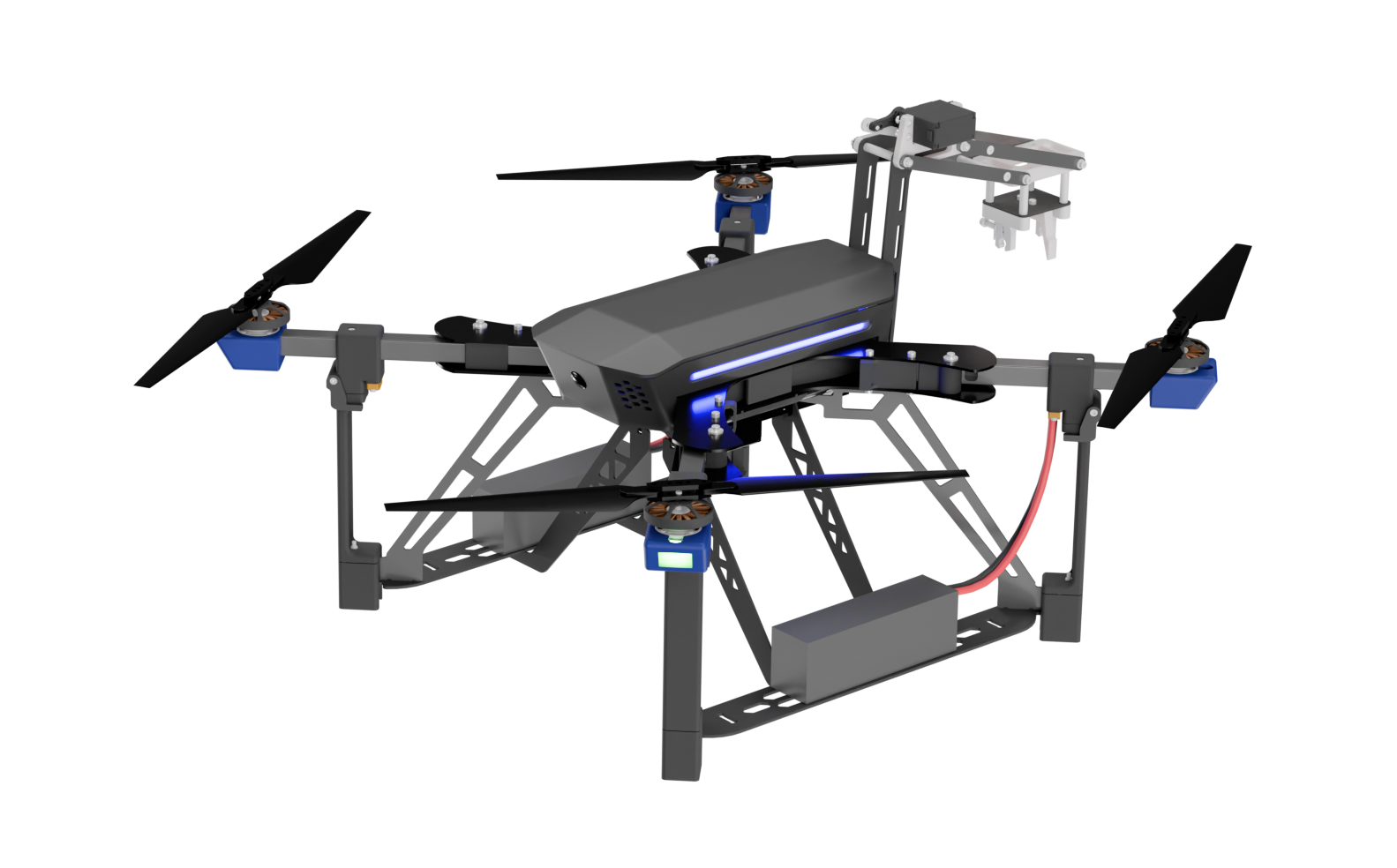

The "Bumblebee" UAS is a versatile quadcopter for autonomous tasks. A powerful and high-tech quadcopter built for championships, research, and industrial applications. The device is equipped with a Raspberry Pi 5 single-board computer (16 GB RAM) with pre-installed ROS2, enabling autonomous missions including power line landing and payload installation. Its robust frame, high performance, and advanced sensors make it an ideal choice for demanding tasks.

SPECIFICATIONS
UAV Type
Multirotor, quadcopter, educational
Weight (without batteries)
2.2 kg
Operational mass (assembled weight)
3 kg
Maximum takeoff weight
6.2 kg
Communication range
Up to 1 km over open terrain
Batteries (capacity)
2 × 6S, 5,000 mAh
Communication interfaces
Radio, GPS, ROS2
Radio communication parameters
Frequency range: 5.725–5.850 GHz, output power 25 mW
Flight duration without payload
Up to 40 minutes
Supply voltage
19.8–25.2 V
Maximum flight speed
22 m/s
Single-board computer
Raspberry Pi 5 (16 GB)
Permissible ambient temperature
−20 to +50 °C
Maximum wind speed
10 m/s
Length
500 mm
Width
500 mm
Height
250 mm
